DVR Camera Lens JZ-8244 Driving Recorder Lens Smart Auxiliary
· Name: Lens
· Brand: GTD
· Material: Glass,Plastic
· Uses: digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field.
Product Details

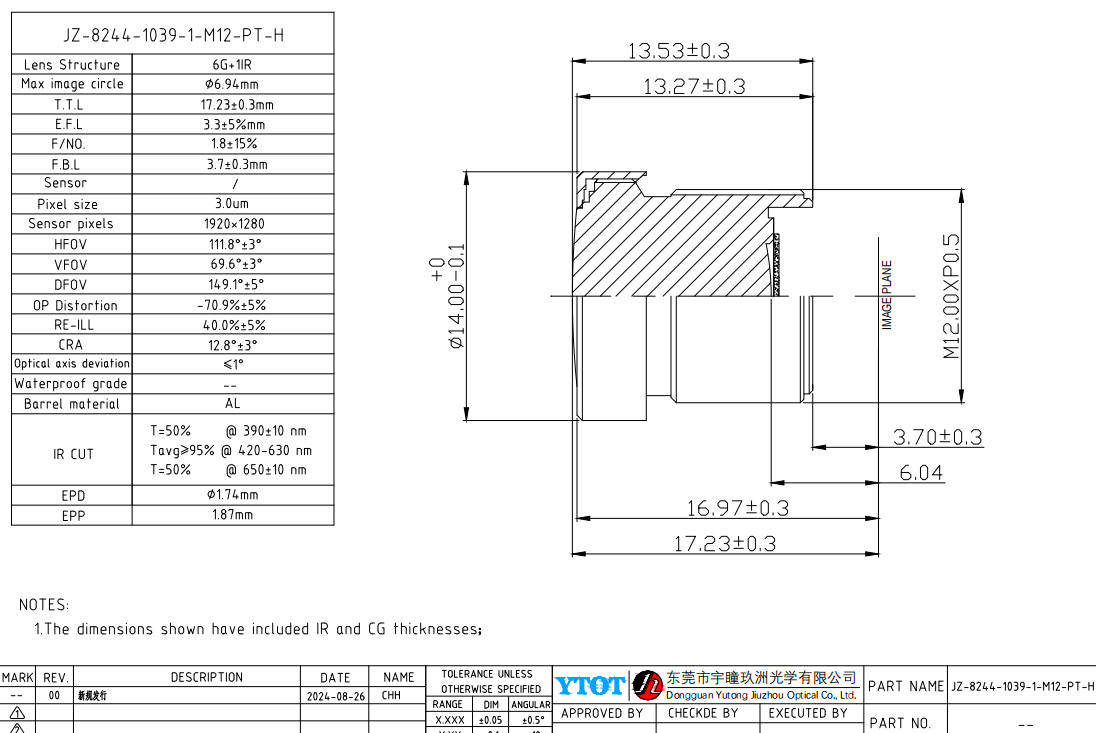

| SPECIFICATION | JZ-8244 |
| SENSOR SIZE | OV2775,IMX290,AR0237 |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | EFL3.0 mm |
| F/NO (INFINITE) | F/NO 1.8 |
| TOTAL LENGTH | TTL 17.23 mm |
| FLANGE BACK LENGTH | FB 3.7 mm |
| FIELD OF VIEW | D132°H 109°V 57° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-70.9%±5% |
| THREAD SIZE | M12*P0.5 |
| ELEMENT | 6G+IR |
- Example:
Product features
-
High-Definition Video Recording: Car DVR lenses typically support high-definition video recording, such as 1080p or 4K resolution, ensuring that the recorded videos are clear and detailed.
-
Wide-Angle View: To capture a broader view of the road, car DVR lenses often feature a wide-angle design, with a field of view that can reach 120° or wider, allowing for better recording of the surroundings.
-
Night Vision Capability: Some car DVR lenses come with excellent low-light performance, enabling them to record clear video in nighttime or low-light conditions.
-
Waterproof and Dustproof: Car DVR lenses are designed to withstand outdoor conditions and typically have certain levels of waterproof and dustproof capabilities to adapt to various weather conditions.
-
Temperature Resistance: Car DVR lenses are built to withstand extreme temperatures, operating reliably in both hot and cold climates.
-
Easy Installation and Operation: Car DVR lenses are designed to be simple to install in the vehicle and user-friendly, with intuitive interfaces for easy setup and control.
PRODUCTION PROCESS
1 check and clean materials
2.assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
Company advantage
1. Optical industry leader
2. Large size, with many subsidiaries
3. Good service
4. R & d, production, sales in one enterprise, professional
5. Low price and fast delivery.
FAQ
1.Why do we choose Guangtongdian Technology?
A:We promise:All of our products are in line with industry standards.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All products were tested 100% before shipment.
2.What is the applicable range of this product?
A:Car ,360 degree panoramic camera,SLR VR Camera,Medical,Sports DV,Self-driving car,look around,Infrared vehicle,ADAS,Driving recorder.
3.Can your products pass ROHS certificate?
A:Yes,our products meet the industrial standards,like:TS16949/ISO9001/ROHS.
4.Accept sample order?What is your minimum order quantity?
A:sample order is accept, but the price is different from the big ones.
5.What are the shipping ways you can offer?
A:By air/sea according to customers’ requirements.
6.Do your products come with warranty?
A:Yes,One year warranty for non-human damage.
Product Tags:
|
|
Driving Recorder F1.8 DVR Camera Lens Smart Auxiliary Drive ，2MP/3MP high definition lenses Images
|
